インドネシア・バンドン市における雨水の地球化学観測

大沢信二,北岡豪一,山田誠

インドネシア・バンドン市における雨水の地球化学観測

 J3bプロジェクト「インドネシアの鍾乳石を用いた赤道域の古気候変動解明」のインドネシア第二次調査時に行ったバンドン市内の雨の地球化学観測の結果を報告する.

 バンドン工科大学気象学・地球物理学教室建物前庭の気象観測用敷地内(写真a)に手製の雨水採取器を設置して(写真b, c),2006年6月1日から5日にかけて降った雨を採取した.観測をした期間は乾季であり,総降水量4mmのわずかな雨であったが,化学分析を行うのに十分な試料(約100mL)が得られた.化学分析の結果を気温とともに表1に示す.この期間に降った雨はpH3.9の強烈な酸性雨であり,pAi(潜在酸性度)が3.9であることから,この酸性雨は大気中の塩基性物質による中和を全く受けていないことがわかった.酸性の原因物質となる硝酸と非海起源硫酸の化学当量濃度はそれぞれ0.039meq/L,0.090meq/Lであり,酸性雨の主因は硫酸である.

 同観測期間の初めには,トリチウム濃度,水素・酸素安定同位体比の測定用試料として雨樋に集まった雨水(約1L)を採取した(写真d).水素と酸素の安定同位体比(δD=-16.1‰,δ18O=-3.36‰)は降水の全地球的な同位体比の関係(δD=8×δ18O+10)上にあった(図1).トリチウム濃度は1.5±0.2TUであり,1960年代初めの核実験で急上昇した降水のトリチウム濃度は赤道域においても自然状態にまで回復してきていることを示していると考えられる(図2).

京都大学大学院理学研究科附属地球熱学研究施設 大沢信二助教授,岡山理科大学理学部基礎理学科 北岡豪一教授・山田誠博士 提供

A geochemical observation of rainwater in Bandung, Indonesia

 We will report here results of a geochemical observation of rainwater at Institut Teknologi Bandung (ITB) in Bandung City carried out during the 2nd investigation of Indonesian limestone caves of J3b project of KAGI21.

 Rainwater was collected by a hand-made rainwater sampler installed on the weather observation site in ITB (Photos a, b and c) between June 1 and June 5 in 2006. Because of dry season, total precipitation during 5 days was only 4mm but volume of the rainwater sample (about 100mL) was enough for chemical analysis of major constituents and measurement of pH. Results of the chemical analysis and the pH measurement with measurement of air temperature are shown in Table 1. The rainwater during this observation term was severe acid rain (pH=3.9). The potential acidity (pAi) of the rainwater is calculated to be 3.9 and this is equal to the actual pH value of the rainwater. The accord between pAi and pH indicates that this acid rain did not have been neutralized at all by basic materials in the atmospheric air. Chemical equivalent concentrations of nitrate and non sea salt (nss) sulfate ions of the rainwater were 0.039 meq/L and 0.090meq/L, respectively, and then sulfuric acid will be chiefly responsible for this severe acid rain.

 As it had rained heavily on the first day of this observation term, we also took rainwater overflowed from an eaves trough for water isotope analyses (δD, δ18O and tritium concentration) (Photo d). Stable hydrogen and oxygen isotope ratios of the sampled rainwater (δD=-3.36‰, δ18O=-16.1‰) are plotted almost along the global meteoric water line (δD=8×δ18O+10) on the δD-δ18O diagram (Fig. 1). Tritium concentration of the rainwater sample was 1.5±0.2TU and this value suggests that tritium concentration level of rainwater in the equatorial region is getting restored to a natural level from the sharp increase in the early 1960’s by the nuclear bomb tests (Fig. 2).

Shinji Ohsawa (Beppu Geothermal Research Laboratory, IGS, Kyoto University), Koichi Kitaoka and Makoto Yamada (Okayama University of Science)

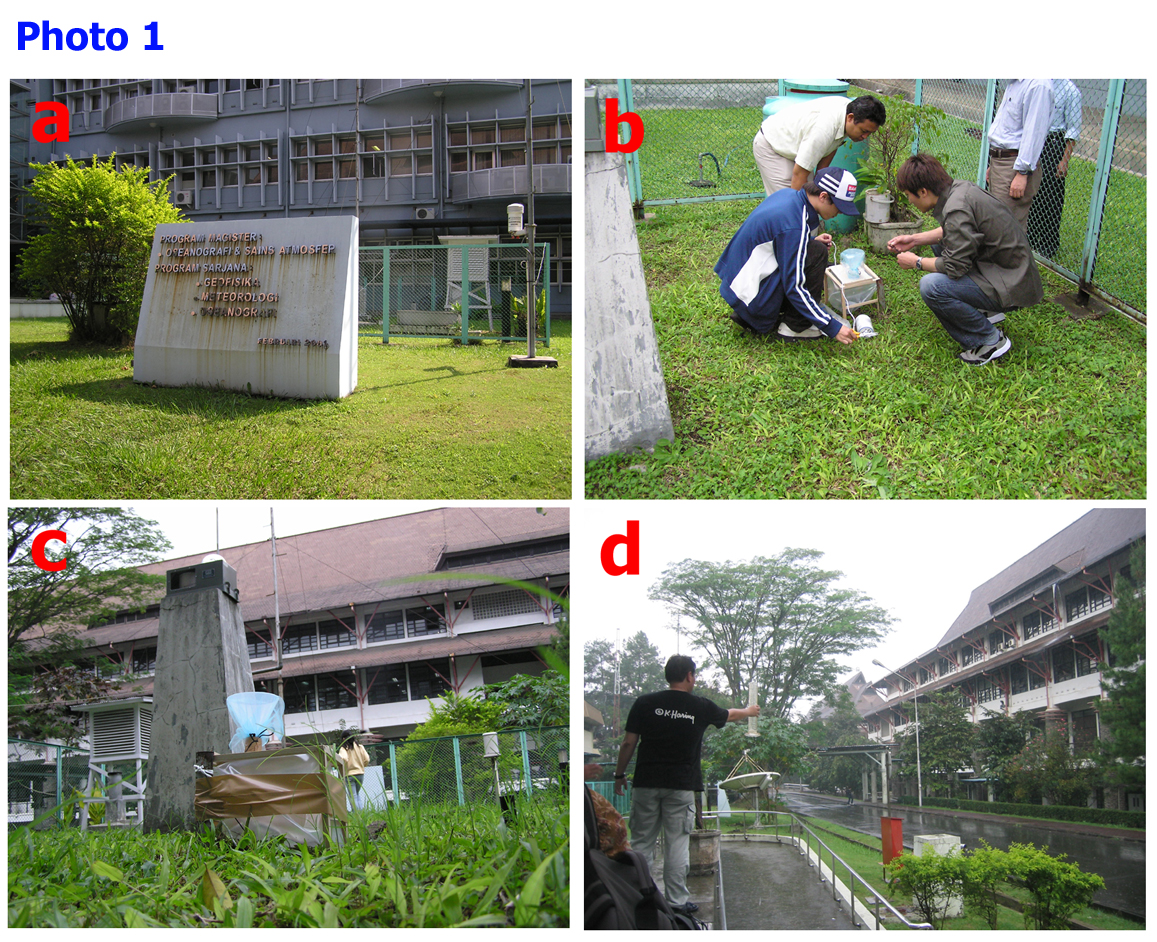

写真1 雨水試料採取器の設置(a, b, c)と水の同位体分析用雨水試料の採取(d)の様子 Photo 1 Temporary installation of a hand-made rainwater sampler at ITB in Bandung (a, b, c) and rainwater sampling for stable and radiogenic water isotope analyses (d)

表1 バンドン工大で採取された雨水の化学データ(2006年6月1-5日,総降水量=4mm) Table 1 Chemical data of rainwater sample with air temperature at ITB in Bandung on June 1-5, 2006 (Total precipitation=4mm)  [1.4MB]

図1 バンドン工大で採取された雨水の安定同位体組成(2006年6月1日) Fig. 1 Stable hydrogen and oxygen isotope ratios of rainwater sampled at ITB in Bandung on June 1, 2006  [1.2MB]

図2 バンドン工大で採取された雨水のトリチウム濃度(2006年6月1日) Fig. 2 Tritium (3H) concentration of rainwater sampled at ITB in Bandung on June 1, 2006  [1.2MB]
